2008 Harley Davidson Sportster 1200 Custom Specs
Harley Davidson XL 1200C Sportster Custom 105th Anniversary Edition
| Make Model | Harley Davidson XL 1200C Sportster Custom 105th Anniversary Edition |
| Year | 2008 |
| Engine | Four stroke, 45° V-Twin, OHV, 2 valves per cylinder. |
| Capacity | 1199 cc / 73.2 cub in. |
| Bore x Stroke | 88.8 x 96.8 mm |
| Cooling System | Air cooled, |
| Compression Ratio | 9.7:1 |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Ignition | Digital CDI |
| Starting | Electric |
| Max Torque | 79 ft/lbs./ 107 Nm @ 3500 rpm |
| Transmission | 5 Speed |
| Final Drive | Belt |
| Gear Ratio | 1st 9.315 2nd 6.653 3rd 4.948 4th 4.102 5th 3.517 |
| Frame | Mild steel, tubular frame; circular sections; cast junctions Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded |
| Front Suspension | 39mm Fork, |
| Front Wheel Travel | 144 mm / 5.6 in |
| Rear Suspension | Coil-over; preload dual-adjustable, |
| Rear Wheel Travel | 54 mm / 2.1 in |
| Front Brakes | Single 300mm discs 2 38mm piston caliper |
| Rear Brakes | Single 300mm discs 2 38mm piston caliper |
| Front Wheel | Chrome, 5-Spoke Cast Aluminum |
| Rear Wheel | Chrome, 5-Spoke Cast Aluminum |
| Front Tyre | D402F MH90-21 54H |
| Rear Tyre | D401 150/80B16 71H |
| Rake | 30° |
| Trail | 107 mm / 4.2 in |
| Dimensions | Length 2225 mm / 87.6 in |
| Wheelbase | 1520 / 59.8 in |
| Seat Height | Laden2 26.6 in / 675.64 mm Unladen 28.5 in / 723.9 mm |
| Ground Clearance | 110 mm / 4.3 in |
| Wet Weight | 264 kg / 582 lbs |
| Oil Capacity (w/filter) | 2.6 Litres |
| Fuel Capacity | 17 Litres / 4.5 US gal |

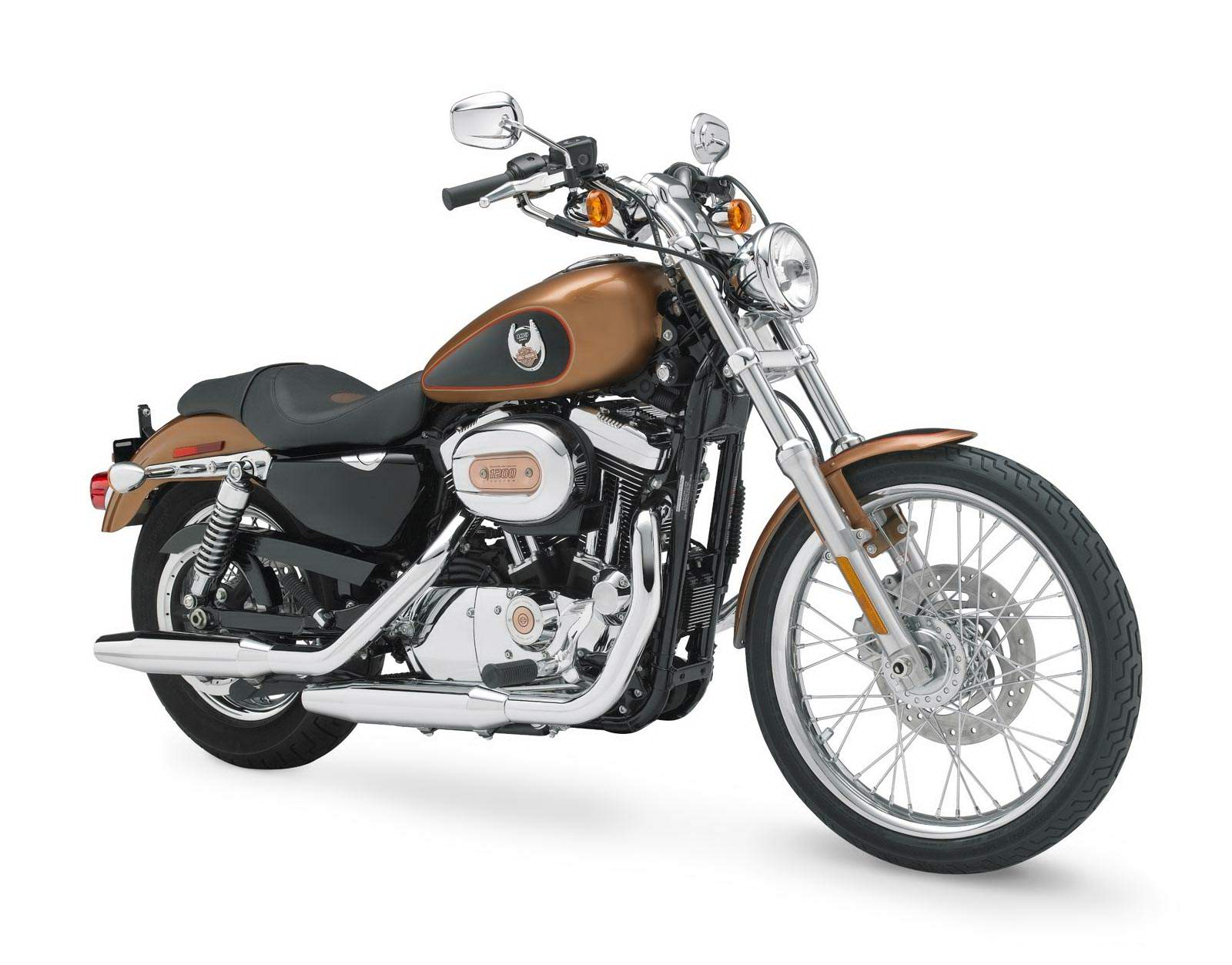

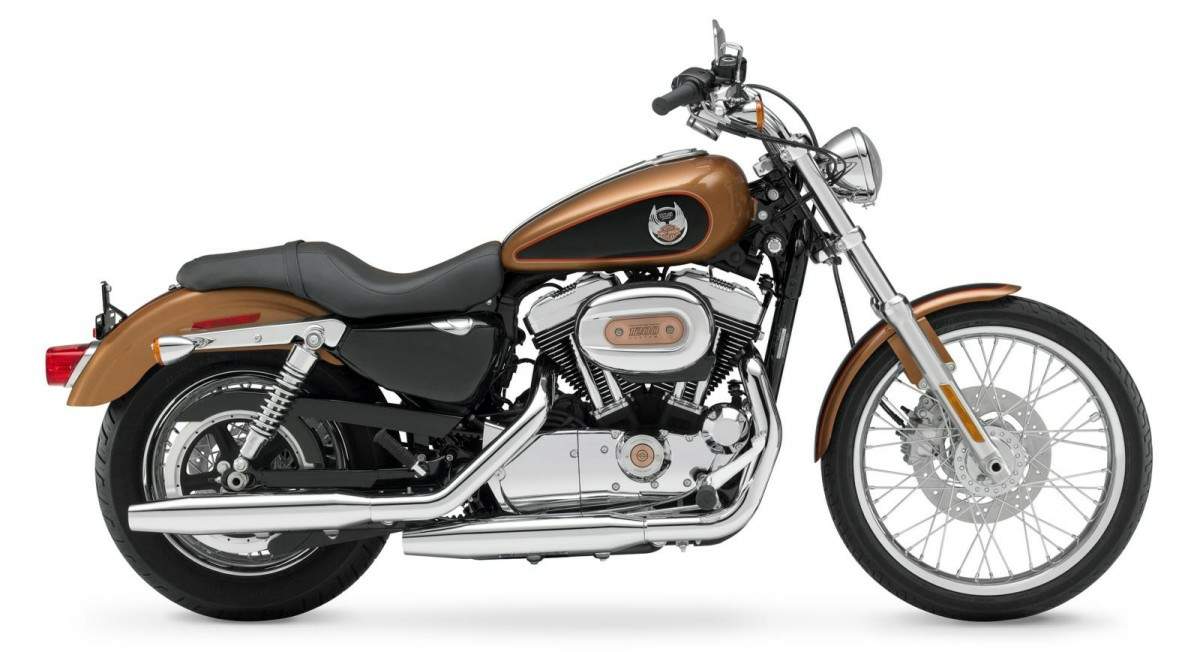

Harley-Davidson XL1200C Sportster 1200 Custom 105th Anniversary Edition
Sparkling chrome sets the 1200 Custom apart from other Sportster models. A chrome Laced 21-inch front and chrome Slotted Disc Cast Aluminum rear wheel, chrome engine highlights, chrome handlebar and headlight, and a polished fuel tank console give this model a custom gleam. Forward controls and a pull-back handlebar riser put the rider in a laid-back position that's perfect for cruising.
New on Sportster for 2008
New Graphics: New tank graphics are featured on the XL 883, XL 883 Low, XL 883C Custom, XL 1200R Roadster and XL 1200C Custom.
105th Anniversary Edition: A limited-edition, serialized XL 1200C Custom 105th Anniversary Edition and XL 1200L Low 105th Anniversary Edition will be available in 2008 (see separate release for details on the 105th Anniversary package).
XL 1200C Sportster 1200 Custom 105th Anniversary Edition features:
Rubber-mounted XL Evolution 1200cc engine
Black powder-coated engine with chrome treatment
NEW tank decoration and cloisonné
Chrome Laced Steel 21-inch front wheel
Chrome Slotted Disc Cast Aluminum 16-inch rear wheel
Wide polished handlebar on chrome pull-back risers
One-piece, two-up Sportster Classic seat
Chrome Staggered Shorty Dual exhaust
Low-Profile rear shocks
Forward foot controls
Chrome bullet headlight
Polished fuel tank console
4.5-gallon fuel tank
Optional Chrome Aluminum Profile Laced wheels
Optional Smart Security System
2008 Harley Davidson Sportster 1200 Custom Specs
Source: https://www.motorcyclespecs.co.za/model/h-d/harley_davidson_xl1200C%2008%20105av.htm
