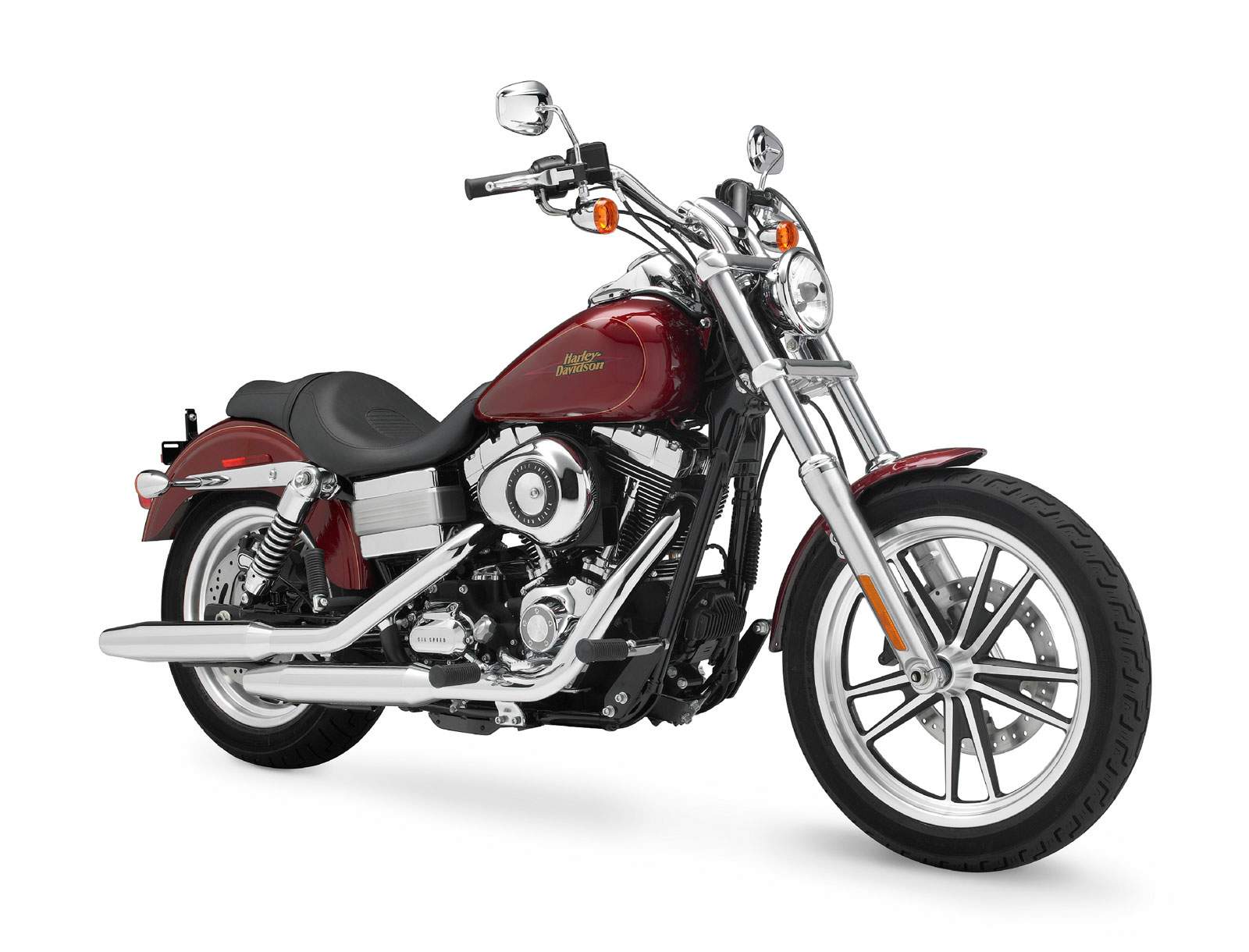

2009 Dyna Low Rider

2009 Dyna Low Rider

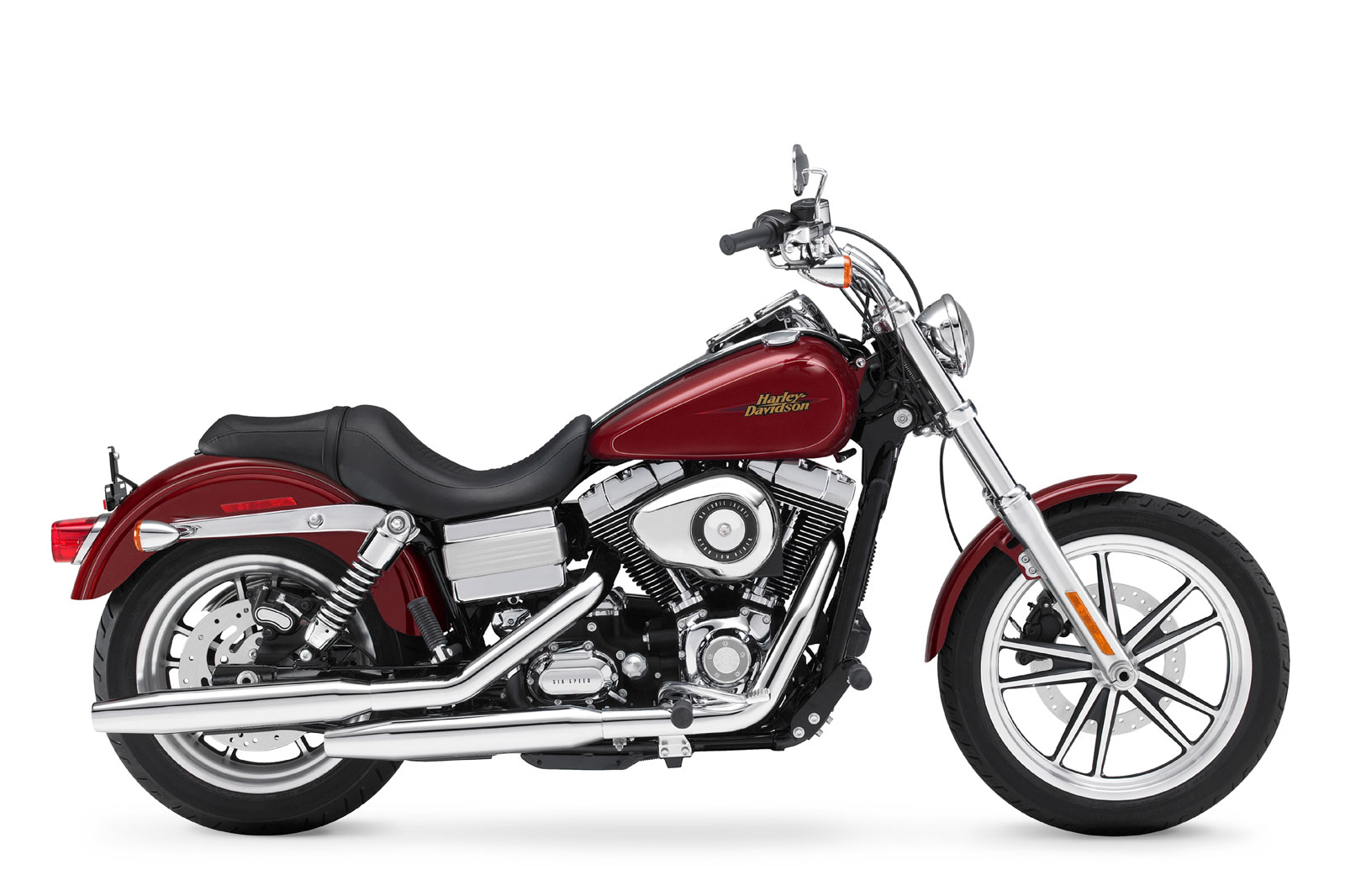

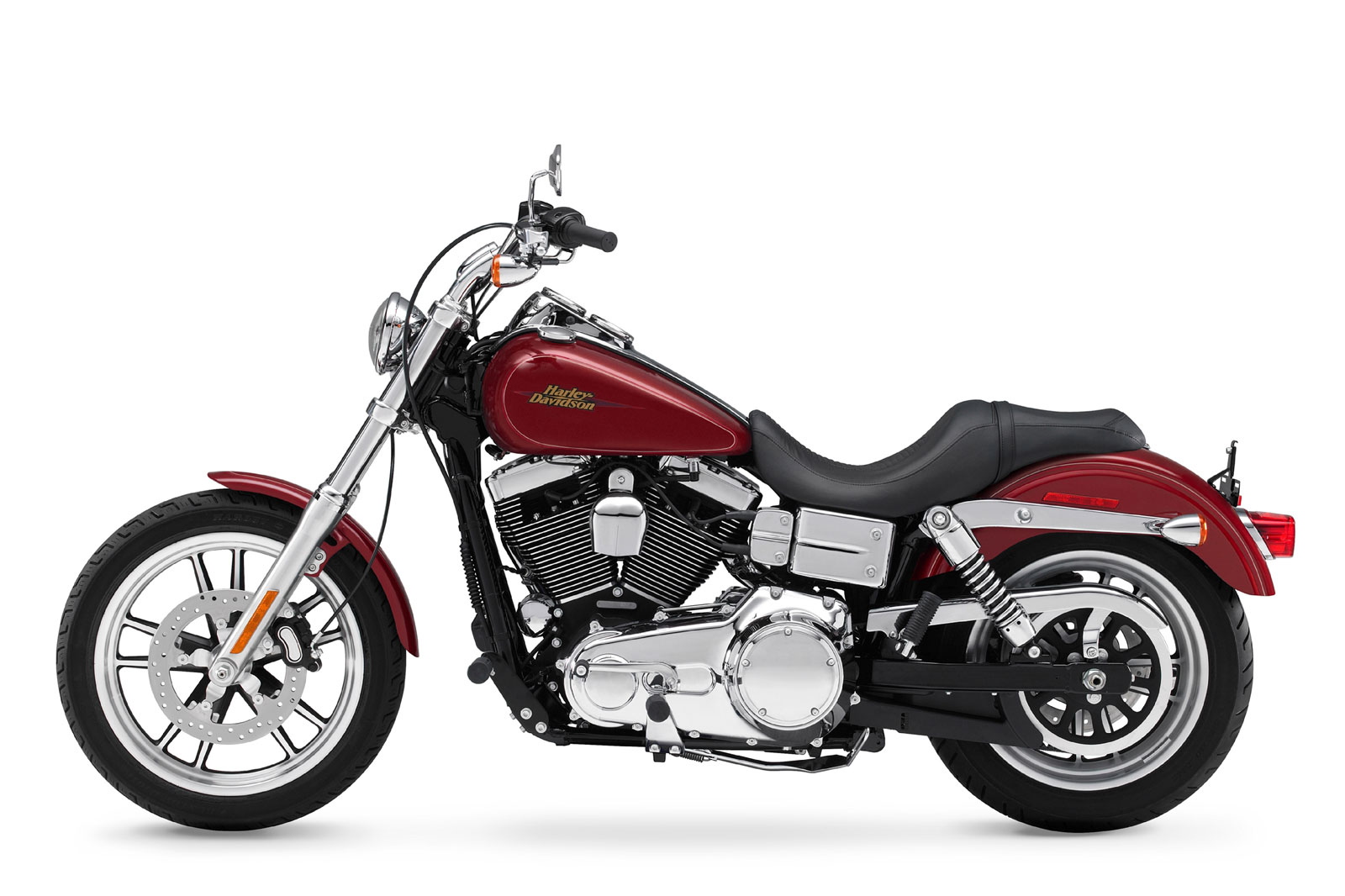

Harley Davidson FXDL Dyna Low Rider

Make Model

Harley Davidson FXDL Dyna Low Rider

Year

2007 - 09

Engine

Four stroke, 45� V-Twin, Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder

Capacity

1584 cc / 96 cu-in
Bore x Stroke 95.3 x 111.1 mm
Cooling System Air cooled
Compression Ratio 9.2:1

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Ignition

Single-fire, non-wasted, map-controlled spark ignition
Starting Electric

Max Torque

124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Clutch Multi-plate, wet

Transmission

6 Speed
Final Drive Belt
Gear Ratio 1st 9.312  /  2nd 6.421  /  3rd 4.774  /  4th 3.926  /  5th 3.279  /  6th 2.79
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded

Front Suspension

49 mm with polished aluminum fork triple clamp and dual-rate springs

Rear Suspension

Coil over shock

Front Brakes

Single 300 mm disc, 4 piston fixed caliper

Rear Brakes

Single 292 mm disc, 2 piston torque free floatingcaliper
Front Wheel Chrome, steel laced ( optional: Black, split 5-spoke cast aluminium)
Rear Wheel Chrome, steel laced ( optional: Black, split 5-spoke cast aluminium)

Front Tyre

D401F 100/90-19 57H

Rear Tyre

D401 150/80B16 71H

Rake 30.5�
Trail 114 mm / 4.5 in
Dimensions Length 2364.74 mm / 93.1 in
width 922.02 mm / 36.3 in
Height 1193.80 mm / 47 in
Seat Height Laden2 655.32 mm / 25.80 in
Unladen 680.72 mm / 26.80 in
Wheelbase 1640 mm / 64.6 in.
Ground Clearance 125 mm / 4.9 in

Dry Weight

290.75 kg / 641 lbs

Wet Weight

309 kg / 672 lbs

Oil Capacity

2.8 L / 3.0 US qt

Fuel Capacity

17.8 Litres / 4.8 US gal

The word "low" describes much more than rider position when it comes to the FXDL Dyna Low Rider. While the 25.8-inch seat height is among the lowest in the Harley-Davidson line, features like mid-mount foot controls, highway pegs and a pullback handlebar also gives the Low Rider its slammed looks and precise handling. The bike's ergonomics are well-suited to those looking for a comfortable ride, while the new Twin Cam 96 powertrain actually brings the Low Rider to a higher level of performance for 2007. Black, 10-spoke Cast Aluminum wheels enhance the Low Rider's slammed look, while the handlebar-mounted indicator cluster adds a classic styling touch. A single floating brake rotor displays more of the front wheel and Chrome, Profile Laced Aluminum wheels are optional. The Low Rider is offered in seven solid and three two-tone color combinations, plus three two-tone custom color options.

New vibration-isolated Twin Cam 96 engine with ESPFI
Black powder-coated engine with chrome covers
Chrome, staggered shorty dual exhaust
6-speed Cruise Drive transmission
Enhanced clutch lever interlock operations
Redesigned gauges with clock, 6-speed indictor light and LED
49mm forks
30.5-degree fork angle/29-degree steering head angle
Wrap-around rear fender
160mm rear tire
Black, 10-spoke Cast Aluminum wheels
Stylized low-profile suspension
Low-slung custom seat
Easy-reach pullback handlebar
Handlebar-mounted indicator cluster
Single floating front brake rotor
Mid-mount foot controls



2009 Dyna Low Rider
